CARGO Specifications

CARGO Specifications

ELECTRICAL

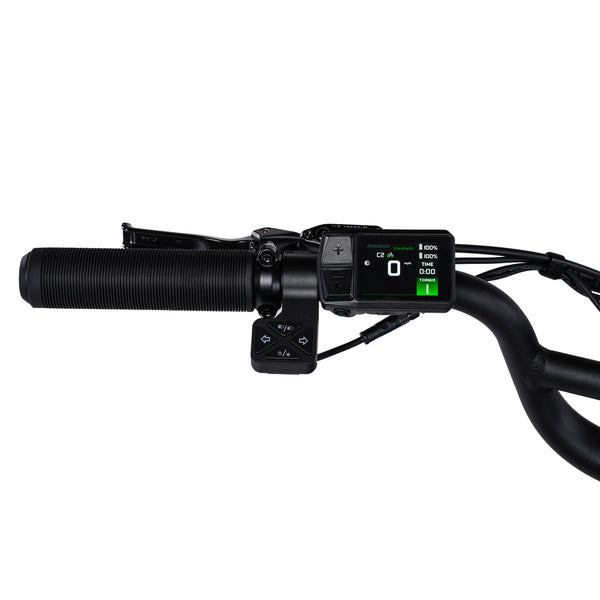

Display
"UL Certified Components: UL94, UL746C, UL758, UL796 HW: Color LCD, USB C, 813 Nits Brightness, Ambient Light Sensor, Audible Turn Signals SW: Charging Indicator, SoC Indicator, Drive Mode Change (Torque and Cruise), Power Meter, Power Output Graph, Trip, Odometer, Time, Three Performance Mode Profiles (Mellow, Standard and PedeGO modes), Turn Signals, 16 Adjustable Settings, 14 Data Points"
Multifunction Switch
High / Low Beam Function, Turn Signals (Left and Right), AUX Switch for Powered Accessory Integration* *Aftermarket Accessories to Launch ‘24
Motor
UL Certified Components: UL1446, UL94, UL746C, UL758, UL796, UL224 750 Watt Nominal Rated, 1500 Watt Peak, 1 Piece Aluminum Wheel
Battery

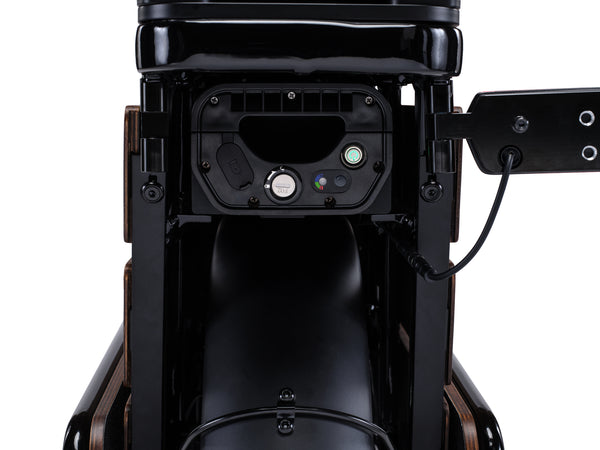

UL2271 Certified, 48V14Ah w/ Resin Potting, IPX5, Sleep and Deep Sleep, 6A Charging Compatible and UL2771 Certified Aftermarket 48V20Ah Range Extender w/ Resin Potting, IPX5, Sleep and Deep Sleep, 6A Charging Compatible
Controller
UL2849 28A Controller w/ 12 Mosfet, 1500 watt peak
Throttle
Pedego Comfort Twist Throttle with Operational Mode LED Indicator
Lights
Front: Front: Daytime Running, Low Beam 80Lux, High Beam 120Lux, 250 Lumen Low, 250 Lumen High, Combined 500 Lumen Rear: Radiant Rear Light w/ Turn Signal, Brake Light and Running Light
MECHANICAL
Frame

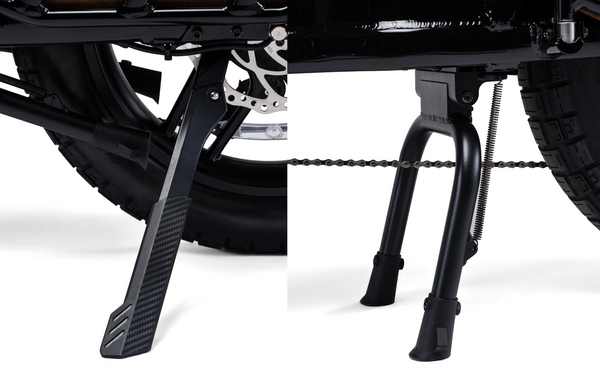

ISO4210-2 Aluminum Alloy 6061, T4T6 Treated, Step Thru, Hand Grip, Bike Stand Compatible, Side Kickstand, Center Double Leg Kickstand
Suspension
Front Suspension: Coil Spring w/ 45mm Travel, 10mm Solid Axle Front Fork, Suspension Lockout and Adjustable Spring Preload
Drivetrain
"10 Speed SRAM GX, PG1030 11/32T Rear Cassette, SRAM GX 10S Rear Derailleur, KMC E10S eBike Chain, 52T Front Chainring w/ Aluminum Double Chainguard (C3 Ready), 150mm Crank Arms and Wellgo Resin Composite Platform Pedals with DU Bushings"
Brakes
Tektro E395 Two Piston Calipers w/ 5mm Brake Pads, 203mm Front and Rear 2.3mm Rotors, Class 3 Ready
Cockpit
Classic Freestyle Low-Rise Handlebars, Pedego Custom Ribbed Design Grips
Wheelset
Front and Rear Solid Cast One-Piece Aluminum Wheels, CST Scout 20 x 4.0 Tires w/ Dual Compound – Class 3 Ready, Full Size Fender Set
Saddle
Pedego Sport Saddle with Satori Suspension Seat Post w/ 40mm Travel
Accessories

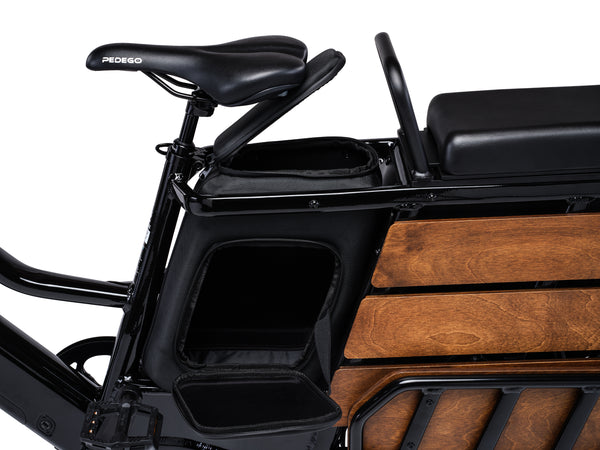

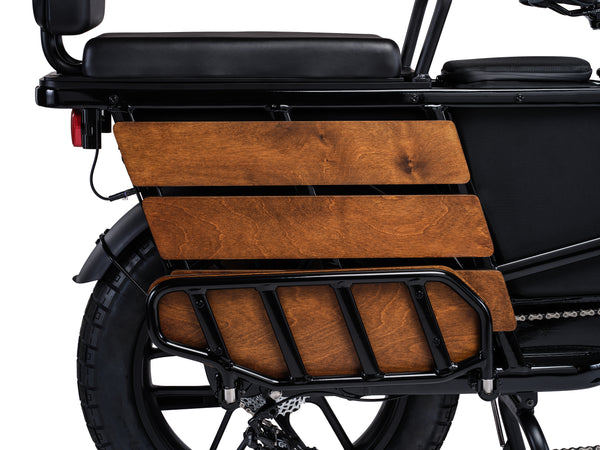

OE: Wood Paneling, Folding Footplates w/ Wood Package and Grip Tape, Front Rack w/ Wood Package, Accessory Adaptor Plate, Passenger Package (Passenger Bar, Passenger Cushion and Passenger Backrest), Pannier Adaptor and Water Resistant Storage Compartment with 11.5L of space Aftermarket: Yepp Seat Adaptor, Multifunction Carrier w/56L of space (Child Carrier and Grocery / Cargo Carrier), Child Footplates,Flat Bed Tray w/ Bed 3.5sqft, Tray 3.1sqft (Two Functional Options)
CERTIFICATION AND COMPLIANCE
UL
SGS Certified & Listed to UL2849 and UL2271 with UL 2580 Certified Cells
