Latch Specifications

Latch Specifications

Key Features

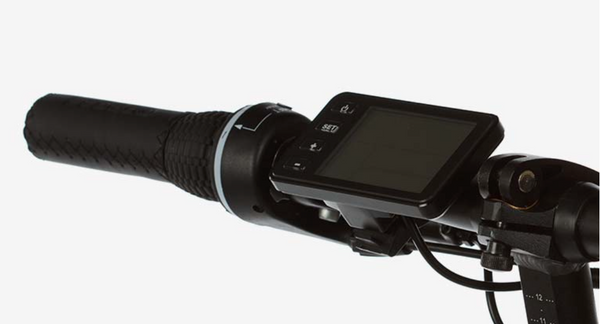

LCD Display

An easy-to-use display features a USB charger for your phone and other devices.

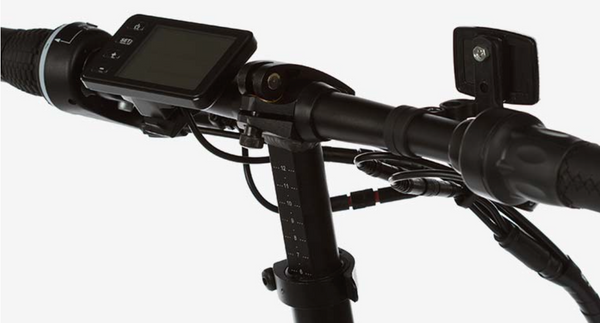

Adjustable Handlebars

Easily adjustable handlebar height and pitch for a perfect fit.

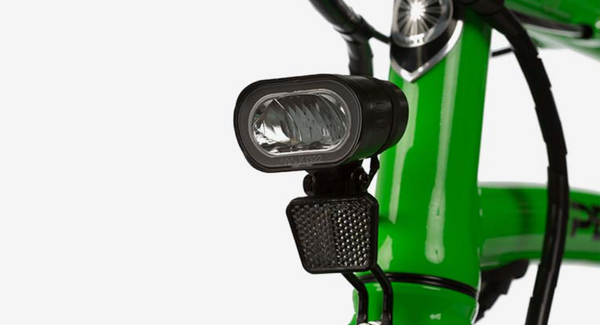

Bright Lights

Integrated front and rear LED lights enhance your safety and convenience.

Balloon Tires

Kevlar belted tires with self-sealing tubes help prevent flats.

Full Coverage

A full-coverage chain guard and fenders keep you clean and dry.

Folds in Seconds

Easily be folds in about thirty seconds. Even the pedals fold!

Belt Drive

Carbon belt drive gives you a seamless, quiet ride with no messy chain grease.

Internally Geared Hub

3-speed hub provides easy pedaling and smooth shifting – even at a complete stop.

Electronics
MOTOR
BLACK 36V BRUSHLESS GEARED FRONT HUB MOTOR; 250 WATT NOMINAL POWER RATING; 30NM TORQUE; QUICK DISCONNECT CABLE WITH WATERPROOF CONNECTION.
BATTERY
36 VOLT 10 OR 15 AMP HOUR WITH PREMIUM LITHIUM-ION 18650 CELLS.
CHARGER
3 AMP SMART CHARGER WITH INTERNAL FAN AND CHARGE INDICATOR LIGHT.
CONTROLLER
36 VOLT 15 AMP SINE WAVE CONTROLLER WITH CUSTOM PEDALSENSE® SOFTWARE AND WATERPROOF CONNECTIONS.
THROTTLE
TWIST AND GO THROTTLE WITH THREADED WATERPROOF CONNECTION.
PEDALSENSE®
FREE RIDE MODE (NO POWER), FIVE LEVELS OF PEDAL ASSIST WITH THROTTLE OVERRIDE, AND THROTTLE ONLY MODE.
DISPLAY
3.5” BACKLIT LCD SCREEN; 4 BUTTONS TO CONTROL ELECTRONICS, TOGGLE INFO DISPLAYED, AND CUSTOMIZE SETTINGS; USB CHARGING PORT; WATERPROOF THREADED CONNECTION; CUSTOM PEDALSENSE® SOFTWARE.
TOP SPEED
20 MPH WITH MOTOR ASSISTANCE ONLY.
Drivetrain
INTERNAL GEARED HUB
SHIMANO NEXUS 3 SPEED REAR HUB; ALUMINUM HUB SHELL; CENTER LOCK ROTOR MOUNT SYSTEM; GEAR 1 RATIO: 0.733, GEAR 2 RATIO: 1.000, GEAR 3 RATIO: 1.360, 186% TOTAL GEAR RATIO.
REAR SPROCKET
GATES 22T SUREFIT 3-LOBE STAINLESS STEEL SPROCKET.
SHIFTER / BELL CRANK
MICROSHIFT MN27-3 LEFT-HAND GRIP SHIFTER WITH EASY TO READ GEAR INDICATOR / MICROSHIFT BC-01 BELL CRANK CONNECTOR.
BOTTOM BRACKET
68MM x 116MM SQUARE TAPER SPINDLE WITH SEALED CARTRIDGE BEARINGS; STEEL CUPS AND BODY.
BELT
GATES CDN 115T BELT; ENGINEERED POLYMER / CARBON TENSILE CORD.
CRANK
GATES S100 CDN 3 PIECE CRANK WITH 5x130MM 55T SPROCKET; 170MM FORGED ALUMINUM CRANK ARMS.
PEDALS
BLACK WELLGO ALUMINUM FOLDING PEDAL; 9/16” SPINDLE; BALL BEARINGS; INTEGRATED PEDAL REFLECTORS.
Brakes
CALIPERS
AVID BB7S MOUNTAIN MECHANICAL DISC BRAKES; INTUITIVE EASY TO USE ADJUSTABILITY; DUAL KNOB PAD ADJUSTMENT; TRI-ALIGN CALIPER-POSITIONING SYSTEM; INTEGRATED CABLE STOP SPRING TENSION ADJUSTMENT; STAINLESS STEEL HARDWARE.
LEVERS
TEKTRO ERGONOMIC LEVER WITH RUBBER FINGER PADDING; INTEGRATED LEFT-HAND BELL; INTEGRATED MOTOR CUT-OFF SWITCH FOR MAXIMUM SAFETY.
PADS
AVID ORGANIC WITH STEEL BACKING PLATE; OE QUALITY FOR NO-COMPROMISE DISC BRAKE PERFORMANCE.
ROTORS
FRONT: SHIMANO SM-RT56 6 BOLT ROTOR; 160MM DIAMETER; REAR: SHIMANO SM-RT54 CENTER LOCK ROTOR; 160MM DIAMETER.
Components
FRAME
6061-T6 ALUMINUM ALLOY; INTEGRATED REINFORCED REAR RACK FOR BATTERY AND STORAGE; INTERNAL / EXTERNAL CABLE AND WIRE ROUTING.
FORK
20” RIGID HIGH TENSILE STEEL; 1 ⅛” THREADLESS STEERER TUBE; DISC BRAKE AND FENDER MOUNTS.
HEADSET
BLACK ZERO-STACK SEMI-INTEGRATED 1 ⅛” THREADLESS; ZS44/28.6-26TPI | ZS44/30.
SEATPOST
BLACK 31.8MM x 580MM RIGID POST; INTEGRATED SADDLE RAIL CLAMP.
SADDLE
INTERMEDIATE COMFORT SADDLE WITH SOFT FOAM; CENTER CHANNEL CUTOUT; DUAL SIDE FACING PEDEGO LOGO; 275MM L x 185MM W.
RIMS
20” ALEX DM24 E-BIKE RATED DOUBLE WALL; LIGHTWEIGHT ALUMINUM ALLOY; 13G X 36 HOLE.
SPOKES
BLACK HEAVY-DUTY 13 GAUGE STAINLESS STEEL SPOKES WITH BRASS NIPPLES.
GRIPS
BLACK PEDEGO GRIP WITH HAND STITCHING AND FOAM PADDING.
HANDLEBAR
BLACK MTB STYLE FLAT BAR; ALUMINUM ALLOY; 25.4MM STEM CLAMP DIAMETER; 580MM WIDTH.
STEM
BLACK ALUMINUM ALLOY FOLDING STEM; 25.4MM HANDLEBAR CLAMP DIAMETER; HEIGHT-ADJUSTABLE 0-80MM; FOR 1 ⅛” (28.6MM) THREADLESS STEERER TUBE.
TIRES
SCHWALBE BIG APPLE 20” x 2.0” WITH K-GUARD KEVLAR FLAT PROTECTION; SCHRADER VALVE.
Extras
LIGHTS
FRONT: LED WITH ADJUSTABLE MOUNT 40 LUX (200 LUMENS); REAR: LED BUILT INTO BATTERY; BOTH POWERED BY MAIN BATTERY AND CONTROLLED BY DISPLAY.
KICKSTAND
BLACK ALUMINUM ALLOY CENTER KICKSTAND; ADJUSTABLE LENGTH COMPOSITE FOOT.
TOOL KIT
CUSTOM PEDEGO TOOL KIT: 6” ADJUSTABLE WRENCH (UP TO 15MM), 12/13G SPOKE WRENCH, T25 TORX WRENCH, 6MM HEX WRENCH, 5MM HEX WRENCH WITH #2 PHILLIPS SCREWDRIVER, 4MM HEX WRENCH.
Weight
BIKE (NO BATTERY)
ONE SIZE: 46.4 LB.
BATTERY
36V/15Ah: 7.6 LB; 36V/10Ah: 7 LB.
